ULS 100 SCRIBE MARKING MACHINE

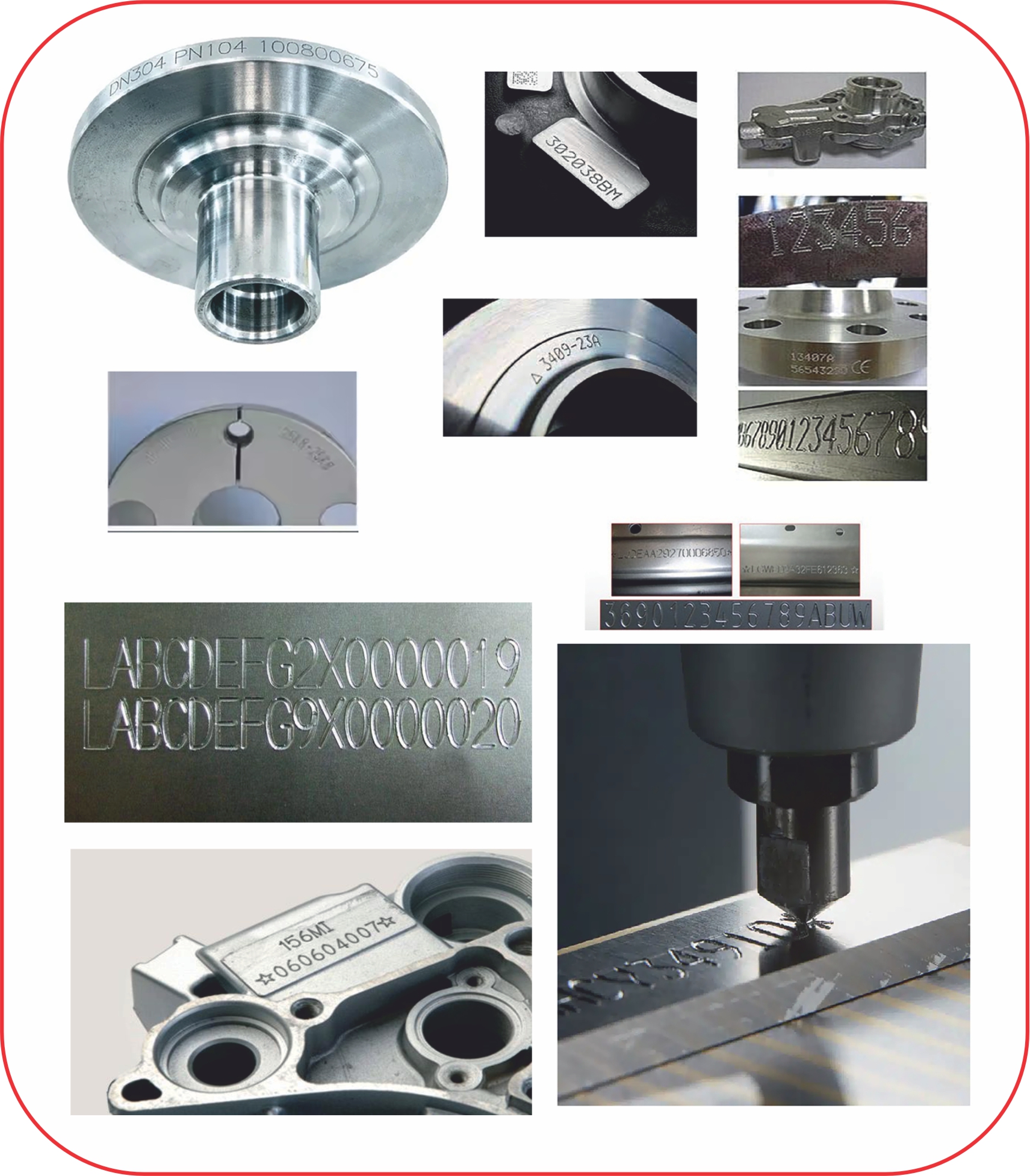

The ULS 100 Scribe Marking Machine is a high-precision pneumatic engraving system designed for permanent and accurate marking on a wide range of metal and hard materials. Its advanced needle alignment system provides easy and precise positioning, making it suitable for industrial identification, traceability and marking applications.

High-Precision Scribe Marking The ULS 100 uses a precision pneumatic needle marking system with a convenient mouse and keyboard follow-up needle alignment function. This enables easy needle positioning and accurate marking placement for consistent results.

Versatile Marking Content The system supports numbers, text, graphics, serial numbers, 2D codes and QR codes. Character size can be adjusted through the software, providing flexibility for different marking requirements.

Wide Material Compatibility The ULS 100 Scribe Marking Machine is suitable for various metals and hard materials with hardness up to HRC 65. An optional diamond cutting head can be used for specific hard-material marking applications.

Fast & Adjustable Marking With a printing speed of approximately 1–9 characters per second and an adjustable marking depth of 0.01–2 mm depending on the material, the system provides flexible and reliable marking performance.

Technologies & Software

Independent microcontroller and Windows (32-bit / 64-bit) operating system support.

Advanced needle alignment system with mouse and keyboard follow-up control for easy and precise marking positioning.

Software supports multiple fonts, text and image editing, graphic conversion, AutoCAD, CorelDRAW and CAXA file conversion, as well as planar, circumferential and fan-shaped text distribution.

Marking Capacity

Printing Area : 80 mm x 60 mm

Minimum Character : 1 x 1 mm

Marking Depth : 0.01–2 mm adjustable

Printing Speed : 1–9 characters/second

Material Hardness : Up to HRC 65

Printing Material : Various metals and hard materials

Fast & Precise Scribe Marking

The ULS 100 Scribe Marking Machine provides fast and accurate pneumatic engraving with a marking speed of approximately 1–9 characters per second.

Its adjustable marking depth of 0.01–2 mm allows precise marking according to the material and application requirements.

The precision needle alignment system ensures accurate positioning and consistent marking results.

Advanced & Flexible Engraving Solution

The ULS 100 Scribe Marking Machine supports various metals and hard materials with hardness up to HRC 65, with an optional diamond cutting head for specific applications.

Its software provides hundreds of font options, text and image editing, graphic conversion and multiple text distribution functions.

The system operates on 220V ±10%, 50/60Hz power and requires a dry air supply of 2–6 Bar for reliable industrial operation.
